kubeinvaders :space_invader: aka k-inv :joystick:

Gamified Chaos Engineering and Educational Tool for Kubernetes

Alt Text

This project, recommended by the CNCF (https://github.com/cncf/sandbox/issues/124), has a strong following and significant educational value. It’s a chaos engineering tool, but it’s also recommended for studying Kubernetes and resilience topics.

It is part of the Cloud Native Computing Foundation’s (CNCF) landscape in the Observability and Analysis - Chaos Engineering section (https://landscape.cncf.io/).

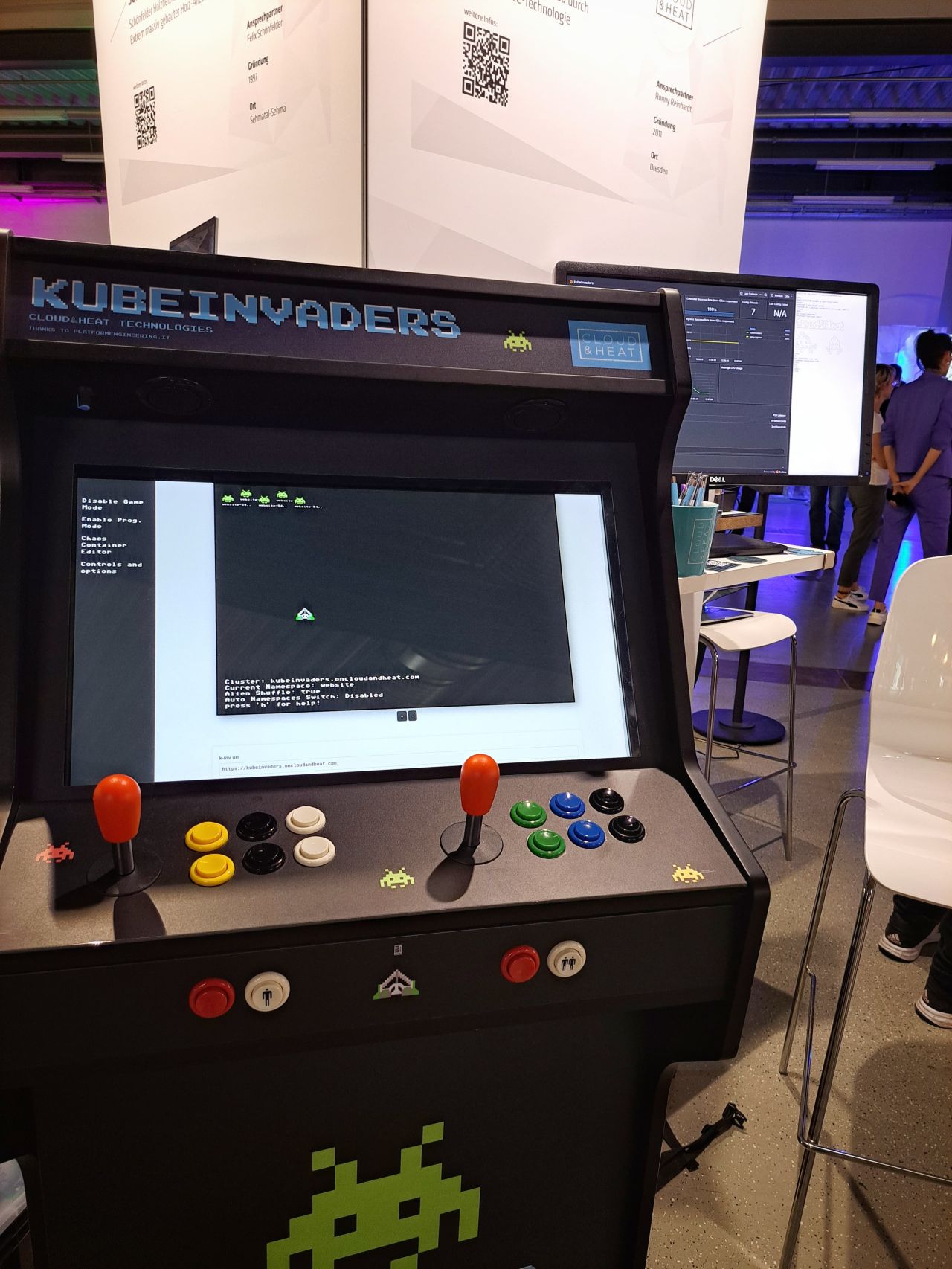

Some companies use it for marketing at tech conferences in DevOps & SRE. For example at 𝗗𝗲𝗰𝗼𝗺𝗽𝗶𝗹𝗲𝗗 𝟮𝟬𝟮𝟱

The teams at Platform Engineering (https://platformengineering.it/) and GDT - Garanti Del Talento (https://www.garantideltalento.it/) back this project. They provide enterprise-grade features and SRE experts to help customers verify the resilience of their Kubernetes infrastructure.

Here are the slides (https://www.slideshare.net/EugenioMarzo/kubeinvaders-chaos-engineering-practices-for-kubernetes1pdf) from the Chaos Engineering speech I prepared for FOSDEM 2023. Unfortunately, I couldn’t be present at my talk, but I still wanted to share them with the community.”

Table of Contents

  1. Description
  2. Usage
  3. URL Monitoring During Chaos Session
  4. Persistence
  5. Generic Troubleshooting & Known Problems
  6. Troubleshooting Unknown Namespace
  7. Metrics
  8. Community
  9. Community blogs and videos
  10. License

Description

Inspired by the classic Space Invaders game, Kubeinvaders offers a playful and engaging way to learn about Kubernetes resilience by stressing a cluster and observing its behavior under pressure. This open-source project, built without relying on any external frameworks, provides a fun and educational experience for developers to explore the limits and strengths of their Kubernetes deployments

Installation-default

Helm installation is currently not supported.

The easiest way to run KubeInvaders is directly with Podman or Docker.

Run with Podman:

podman run -p 8080:8080 docker.io/luckysideburn/kubeinvaders:latest

Run with Docker:

docker run --rm -p 8080:8080 docker.io/luckysideburn/kubeinvaders:latest

Then open:

http://localhost:8080

If you want to run KubeInvaders against your own Kubernetes cluster, create the required RBAC components (assumes k8s v1.24+):

Create the required components (assumes k8s v1.24+):

cat << 'EOF' | kubectl apply -f -
apiVersion: v1
kind: Namespace
metadata:
  name: kubeinvaders
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: kinv-cr
rules:
  - apiGroups:
      - ""
    resources:
      - pods
      - pods/log
    verbs:
      - delete
  - apiGroups:
      - batch
      - extensions
    resources:
      - jobs
    verbs:
      - get
      - list
      - watch
      - create
      - update
      - patch
      - delete
  - apiGroups:
      - "*"
    resources:
      - "*"
    verbs:
      - get
      - watch
      - list
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: kinv-sa
  namespace: kubeinvaders
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kinv-crb
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kinv-cr
subjects:
  - kind: ServiceAccount
    name: kinv-sa
    namespace: kubeinvaders
---
apiVersion: v1
kind: Secret
type: kubernetes.io/service-account-token
metadata:
  name: kinv-sa-token
  namespace: kubeinvaders
  annotations:
    kubernetes.io/service-account.name: kinv-sa
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  namespace: default
  name: kubevirt-vm-restart-role
rules:
- apiGroups: ["subresources.kubevirt.io"]
  resources: ["virtualmachines/restart"]
  verbs: ["update"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubevirt-vm-restart-binding
  namespace: default
subjects:
- kind: ServiceAccount
  name: kubeinvaders
  namespace: kubeinvaders
roleRef:
  kind: ClusterRole
  name: kubevirt-vm-restart-role
  apiGroup: rbac.authorization.k8s.io
EOF

Extract the token:

TOKEN=$(k get secret -n kubeinvaders -o go-template='' kinv-sa-token)

Important: use a valid Kubernetes token. If the token is missing, invalid, or expired, KubeInvaders cannot call the Kubernetes API and game actions will fail.

The example above shows how to extract the token from kinv-sa-token. If you use short-lived tokens, generate a new one when needed:

kubectl create token kinv-sa -n kubeinvaders --duration=8h

Create two namespaces:

kubectl create namespace namespace1
kubectl create namespace namespace2

Usage

Start The Chaos Experiment

Press the “Start” button to initiate the automatic pilot (the button changes to “Stop” to disable this feature).

Enable Shuffle :joystick:

Press the “Enable Shuffle” button to randomly rearrange the positions of pods or K8s nodes (the button changes to “Disable Shuffle” to deactivate this feature).

Enable Auto Jump Between Namespace :joystick:

Press the “Auto NS Switch” button to randomly switch between namespaces (the button changes to “Disable Auto NS Switch” to deactivate this feature).

Show / Hide Pods Name :joystick:

Press the “Hide Pods Name” button to conceal the names of the pods beneath the aliens (the button changes to “Show Pods Name” to deactivate this feature).

Information about Current Status and Events :joystick:

As described below, on the game screen near the spaceship, there are details about the current cluster, namespace, and some configurations.

Alt Text

Under the + and - buttons, a bar appears with the latest game events.

Alt Text

Show Special Keys :joystick:

Press ‘h’ or select ‘Show Special Keys’ from the menu.

Zoom In / Out :joystick:

Press the + or - buttons to increase or decrease the game screen.

Chaos Containers for Master and Worker Nodes

URL Monitoring During Chaos Session

During a chaos engineering session, you can monitor the behavior of an HTTP call exposed by an Ingress.

Use the flag “Add HTTP check & Chaos Report” and add the URL to monitor Alt Text

Follow real time charts during the experiment

Alt Text

Persistence

K-inv uses Redis to save and manage data. Redis is configured with “appendonly.”

The legacy Helm chart does not support PersistentVolumes.

Generic Troubleshooting and Known Problems

Troubleshooting Unknown Namespace

Prometheus Metrics

KubeInvaders exposes metrics for Prometheus through the standard endpoint /metrics.

Here is an example of Prometheus configuration:

scrape_configs:
- job_name: kubeinvaders
  static_configs:
  - targets:
    - kubeinvaders.kubeinvaders.svc.cluster.local:8080

Example of metrics:

Metric Description
chaos_jobs_node_count{node=workernode01} Total number of chaos jobs executed per node
chaos_node_jobs_total Total number of chaos jobs executed against all worker nodes
deleted_pods_total 16 Total number of deleted pods
deleted_namespace_pods_count{namespace=myawesomenamespace} Total number of deleted pods per namespace

Download Grafana dashboard

Alt Text

Alt Text

Community

Please reach out for news, bugs, feature requests, and other issues via:

Community blogs and videos

Alt Text

License

KubeInvaders is licensed under the Apache License, Version 2.0. See LICENSE for the full license text.
